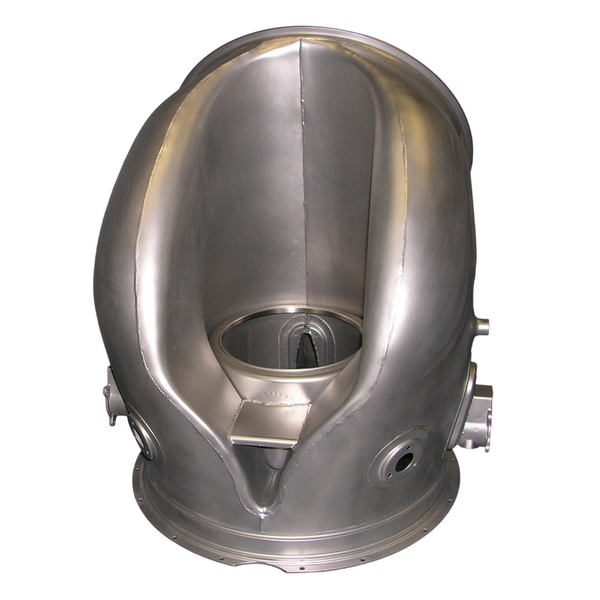

6005T47P01 Power Turbine Exhaust Casing

Overview

The 6005T47P01 Power Turbine Exhaust Casing is a critical structural component used in gas turbine and aero-engine systems. It forms part of the turbine exhaust section and is responsible for guiding high-temperature exhaust gases safely out of the turbine while maintaining structural integrity and aerodynamic efficiency.

Due to the extreme operating conditions in turbine environments, the exhaust casing must withstand high temperatures, high mechanical stress, and corrosive exhaust gases. Precision manufacturing, advanced materials, and strict dimensional control are essential to ensure reliable performance and long service life.

MECNME provides precision manufacturing and machining services for turbine casing components and other high-precision aerospace parts, supporting OEM and maintenance applications with advanced CNC machining capabilities and strict quality inspection.

Function of a Power Turbine Exhaust Casing

The exhaust casing is located at the downstream end of the power turbine. Its primary functions include:

• Directing exhaust gases from the turbine stage to the exhaust system

• Supporting structural components within the turbine section

• Maintaining proper aerodynamic flow of exhaust gases

• Protecting surrounding structures from extreme temperatures

A properly designed exhaust casing improves turbine efficiency and structural stability, while reducing thermal stress and vibration.

In gas turbine systems, the casing must also maintain tight dimensional tolerances to ensure correct alignment with adjacent turbine modules.

Material Requirements

Because turbine exhaust casings operate in environments where temperatures may exceed 600°C – 900°C, high-performance materials are required.

Common materials used in such components include:

Nickel-Based Superalloys

Nickel alloys such as Inconel 718 or Inconel 625 are widely used in turbine components because they maintain high strength at elevated temperatures.

Key properties:

• Excellent high-temperature strength

• Strong resistance to oxidation and corrosion

• Good fatigue resistance

Stainless Steel Alloys

In some turbine applications, high-temperature stainless steels such as AISI 321 or 347 are used.

These materials offer:

• Good heat resistance

• Oxidation resistance

• Structural stability under thermal stress

Heat-Resistant Alloy Steel

Certain turbine exhaust components may use specialized alloy steels designed for thermal and mechanical load resistance.

Material selection depends on the specific turbine design and operating environment.

Manufacturing Process

Producing a power turbine exhaust casing requires advanced manufacturing techniques to ensure structural integrity and dimensional accuracy.

Typical manufacturing processes include:

Precision CNC Machining

High-precision CNC machining is used to finish critical surfaces and ensure tight tolerances. MECNME utilizes advanced multi-axis CNC machining centers capable of producing complex aerospace components with high accuracy.

Typical machining features include:

• flange surfaces

• bolt holes and mounting interfaces

• sealing surfaces

• alignment features

Precision machining ensures proper assembly with other turbine components.

Casting or Forging

Exhaust casings are often produced using precision casting or forging methods to achieve the required structural strength.

Casting processes allow complex shapes and internal structures to be formed efficiently, while forging improves mechanical properties through controlled material deformation.

Heat Treatment

Heat treatment processes are used to improve material strength and relieve internal stresses created during manufacturing.

Typical processes include:

• solution heat treatment

• aging

• stress relieving

These treatments ensure the casing can withstand high temperatures and mechanical loads.

Typical Dimensions and Technical Parameters

Although the exact specifications of the 6005T47P01 Power Turbine Exhaust Casing depend on the engine model, typical turbine exhaust casing parameters may include:

Outer diameter:
300 mm – 900 mm

Wall thickness:
5 mm – 25 mm

Operating temperature range:
600°C – 900°C

Tolerance for critical surfaces:
±0.01 mm – ±0.05 mm

Surface roughness for sealing surfaces:
Ra 0.8 – 1.6 μm

These parameters ensure proper fit within the turbine assembly and reliable performance during operation.

Inspection and Quality Control

Due to the critical nature of turbine components, strict quality control procedures are required during manufacturing.

Typical inspection methods include:

Coordinate Measuring Machine (CMM)

CMM inspection verifies dimensional accuracy and ensures compliance with engineering drawings.

Non-Destructive Testing (NDT)

NDT methods are used to detect internal defects without damaging the component.

Common methods include:

• ultrasonic testing

• dye penetrant inspection

• radiographic inspection

Surface and Material Testing

Additional tests ensure material quality and surface integrity:

• hardness testing

• metallographic analysis

• surface roughness measurement

MECNME implements rigorous quality inspection processes to ensure all aerospace components meet strict industry standards.

Applications

Power turbine exhaust casings are widely used in:

• aircraft gas turbine engines

• industrial gas turbines

• power generation turbines

• marine turbine systems

• aerospace propulsion systems

These components play a key role in maintaining turbine efficiency, structural stability, and safe exhaust gas flow.

Custom Turbine Component Manufacturing by HGTP

MECNME provides precision machining services for complex aerospace components, including turbine housings, structural casings, and high-temperature alloy parts.

Our capabilities include:

• multi-axis CNC machining

• precision turning and milling

• machining of high-temperature alloys

• tight tolerance aerospace components

• custom prototype and batch production

By combining advanced equipment, experienced engineers, and strict quality control procedures, HGTP supports customers in the aerospace and energy industries with reliable precision components.

Conclusion

The 6005T47P01 Power Turbine Exhaust Casing is a vital component in turbine systems, responsible for managing high-temperature exhaust flow and supporting structural stability within the engine. Manufacturing such components requires advanced materials, precision machining technologies, and rigorous quality control procedures.

With extensive experience in precision machining and complex component manufacturing, HGTP provides reliable solutions for turbine components and other high-performance industrial parts, helping customers achieve high efficiency, durability, and operational safety in demanding environments.
