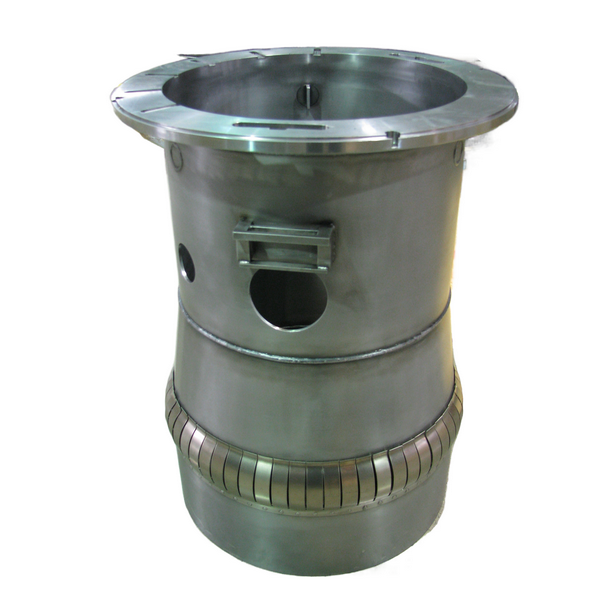

MS9001 Flow Sleeve

The MS9001 Flow Sleeve is an important internal component used in industrial gas turbine combustion systems. In turbines such as the GE MS9001 Gas Turbine, the flow sleeve helps manage and direct compressed air entering the combustion section. It forms part of the air distribution system that ensures stable combustion, proper cooling, and uniform airflow within the turbine combustor.

Flow sleeves are typically manufactured from high-temperature alloys and require precision fabrication to withstand harsh operating conditions including extreme heat, pressure, and vibration. Companies specializing in turbine components, such as HGTP, provide precision machining and fabrication services for these critical hot-section parts.

Function of the Flow Sleeve

The flow sleeve sits between the compressor discharge area and the combustor liner. Its main role is to guide and distribute compressed air efficiently into the combustion system.

Key functions include:

1. Airflow Guidance
The flow sleeve directs compressed air toward the combustion liner while maintaining a stable and uniform flow pattern.

2. Cooling Support
Part of the airflow passing through the sleeve is used to cool the combustor liner and surrounding structures.

3. Pressure Stabilization
It helps maintain correct pressure levels around the combustion chamber to support stable fuel-air mixing.

4. Structural Support
The flow sleeve also provides mechanical alignment between the combustor components and the turbine casing.

Without proper airflow management, combustion instability, overheating, or turbine efficiency loss may occur.

Material Requirements

Flow sleeves operate in a high-temperature environment and must resist oxidation, thermal fatigue, and corrosion.

Typical materials include:

Nickel-Based Superalloys

Common materials used for MS9001 flow sleeves include:

• Inconel 625

• Inconel 718

• Hastelloy X

These alloys provide:

• excellent high-temperature strength

• strong oxidation resistance

• long service life under thermal cycling

Heat-Resistant Stainless Steel

Some designs also utilize high-temperature stainless steels such as:

• AISI 321

• AISI 347

These materials offer good thermal stability and weldability.

Manufacturing Process

Producing a flow sleeve for large industrial turbines like the MS9001 requires a combination of forming, machining, and welding technologies.

Precision Sheet Metal Forming

Flow sleeves are often produced from rolled alloy sheets using processes such as:

• rolling and bending

• cylindrical forming

• deep drawing

These processes create the large cylindrical body structure required for airflow management.

CNC Machining

After forming, critical areas are precision-machined using CNC equipment to ensure accurate dimensions.

Machined features include:

• mounting flanges

• bolt holes

• interface surfaces

• alignment grooves

Multi-axis CNC machining ensures tight tolerances and proper fit within the combustion assembly.

Welding and Assembly

Because flow sleeves may consist of multiple formed sections, welding is necessary for final assembly.

Common welding technologies include:

• TIG welding

• laser welding

• electron beam welding

These methods provide high-strength joints while minimizing heat distortion.

Cooling and Airflow Design

Flow sleeves incorporate various design features to optimize airflow distribution.

Typical features include:

• airflow slots

• cooling holes

• air distribution channels

• support ribs

These features allow controlled airflow around the combustion liner, preventing localized overheating and improving turbine efficiency.

Technical Specifications (Typical)

Although specifications vary depending on turbine configuration, typical parameters for MS9001 flow sleeves include:

Outer diameter
600 mm – 1200 mm

Wall thickness
3 mm – 8 mm

Operating temperature
600°C – 1000°C

Material grade
Nickel-based superalloys or heat-resistant stainless steel

Tolerance (critical interfaces)
±0.03 mm – ±0.08 mm

Surface finish
Ra 1.6 – 3.2 μm

Quality Control and Inspection

Because flow sleeves are critical turbine components, strict inspection procedures are applied during manufacturing.

Dimensional Inspection

Coordinate measuring machines (CMM) verify that all dimensions match engineering drawings.

Non-Destructive Testing (NDT)

Typical inspection methods include:

• dye penetrant testing

• ultrasonic inspection

• radiographic inspection

These tests ensure the component is free from cracks, weld defects, or internal flaws.

Material Testing

Additional verification methods include:

• chemical composition analysis

• hardness testing

• metallographic examination

Applications

The MS9001 Flow Sleeve is primarily used in heavy-duty industrial gas turbines for power generation.

Common applications include:

• gas turbine power plants

• combined-cycle power stations

• industrial energy systems

• turbine maintenance and overhaul (MRO)

These components play a critical role in ensuring efficient combustion and reliable turbine operation.

Precision Turbine Components Manufacturing

Companies with expertise in high-temperature turbine components, such as HGTP, provide specialized manufacturing services including:

• CNC machining of superalloys

• turbine combustor component fabrication

• precision welding and assembly

• turbine hot-section repair and replacement parts

These capabilities support both original equipment manufacturing and turbine maintenance programs.
