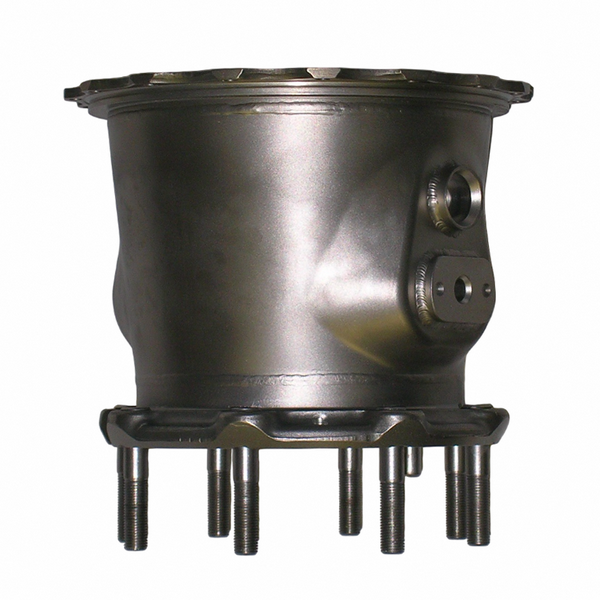

Power Turbine Front (No. 4) Bearing Housing

The Power Turbine Front (No. 4) Bearing Housing is a critical structural and support component in aircraft and industrial gas turbine engines. It houses and supports the No. 4 bearing, which stabilizes the power turbine shaft and ensures smooth rotational operation under high loads and temperatures.

In turboprop engines such as the Pratt & Whitney Canada PT6A, the No.4 bearing housing plays a key role in maintaining shaft alignment between the power turbine and the gearbox system. It must withstand high rotational speeds, mechanical loads, and significant thermal stress while maintaining precise tolerances.

Manufacturers with expertise in turbine components, such as HGTP, produce precision bearing housings using advanced CNC machining and high-strength aerospace materials.

Function of the No. 4 Bearing Housing

The bearing housing supports the turbine shaft and protects the bearing assembly within the engine structure.

Primary functions include:

Shaft Support

The housing secures the No. 4 bearing, which stabilizes the rotating power turbine shaft and prevents excessive vibration.

Load Distribution

It distributes mechanical loads generated by turbine rotation and aerodynamic forces to the surrounding engine structure.

Lubrication Control

The housing integrates oil passages and seals that maintain proper lubrication of the bearing during engine operation.

Thermal Protection

Because it operates close to the turbine section, the housing must manage heat through material selection and cooling airflow.

Materials Used

Bearing housings must combine high strength, thermal stability, and excellent machinability.

High-Strength Stainless Steel

Common alloys include:

• 17-4 PH stainless steel

• AISI 410 stainless steel

• AISI 420 stainless steel

These materials provide:

• excellent mechanical strength

• corrosion resistance

• good dimensional stability under temperature changes

Nickel-Based Superalloys

For engines operating at higher temperatures, nickel-based alloys may be used:

• Inconel 718

• Inconel 625

These alloys maintain strength and fatigue resistance under extreme thermal conditions.

Manufacturing Process

Producing a Power Turbine Front Bearing Housing requires high-precision machining and strict quality control.

CNC Machining

Most bearing housings are machined from forged or billet material using multi-axis CNC machining centers.

Critical machining operations include:

• internal bearing seat machining

• oil channel drilling

• mounting flange machining

• sealing surface finishing

Typical tolerance for bearing seats is extremely tight to ensure correct bearing fit.

Precision Boring

The bearing bore must be perfectly concentric with the turbine shaft axis.

High-precision boring operations achieve tolerances such as:

±0.005 mm – ±0.01 mm

This level of accuracy ensures proper bearing preload and smooth rotation.

Surface Finishing

After machining, surfaces are finished to meet strict aerospace requirements.

Typical finishes include:

• grinding of bearing seats

• polishing of sealing surfaces

• deburring and edge finishing

Surface roughness for bearing seats is typically:

Ra 0.4 – 0.8 μm

Lubrication System Integration

The bearing housing contains channels that deliver lubricating oil to the bearing assembly.

These systems include:

• oil inlet ports

• oil return passages

• seal grooves

• pressure balancing channels

Proper lubrication is essential to prevent bearing overheating and premature wear.

Technical Specifications (Typical)

Although specifications vary depending on engine model, typical parameters include:

Outer diameter
120 mm – 350 mm

Bearing bore tolerance
±0.005 mm – ±0.01 mm

Material hardness
30 – 42 HRC

Operating temperature
200°C – 500°C

Surface roughness (bearing seat)
Ra 0.4 – 0.8 μm

These strict specifications ensure stable turbine operation and long component life.

Inspection and Quality Assurance

Bearing housings undergo rigorous inspection to ensure reliability.

Dimensional Inspection

Coordinate measuring machines (CMM) verify all dimensions and concentricity.

Non-Destructive Testing (NDT)

Common testing methods include:

• dye penetrant inspection

• ultrasonic testing

• magnetic particle inspection

These procedures detect cracks or structural defects.

Balance and Alignment Verification

Some housings require additional checks to ensure perfect alignment with the turbine shaft and surrounding components.

Applications

The Power Turbine Front (No. 4) Bearing Housing is widely used in:

• turboprop aircraft engines

• helicopter turbine engines

• industrial gas turbines

• aerospace engine maintenance and overhaul (MRO)

It is essential for maintaining shaft stability, reducing vibration, and ensuring reliable turbine operation.

Precision Turbine Component Manufacturing

Manufacturers specializing in turbine parts, such as HGTP, provide advanced manufacturing capabilities including:

• multi-axis CNC machining

• superalloy processing

• high-precision boring and grinding

• turbine hot-section component manufacturing

These capabilities support the aerospace and power generation industries with reliable, high-precision turbine components.
