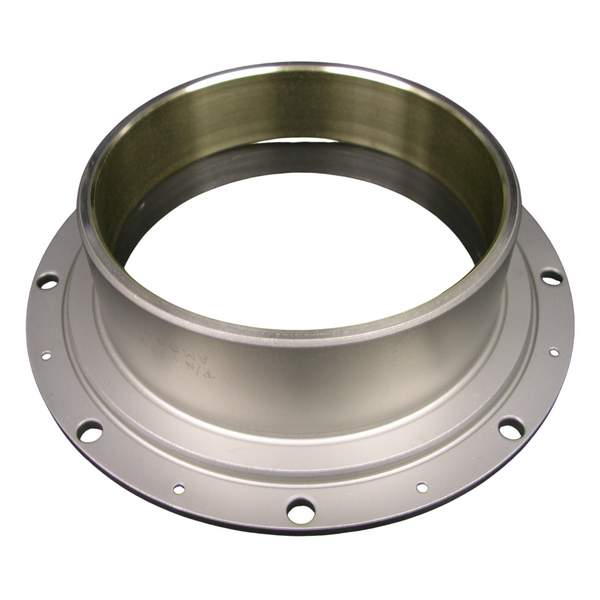

Turbine Forward Stationary Seal

The Turbine Forward Stationary Seal is a critical sealing component used in gas turbine engines to control airflow and maintain pressure balance within the turbine section. It is typically installed near the front of the turbine assembly and works with rotating components to minimize leakage between high-pressure and low-pressure zones.

In industrial and aerospace turbines such as the GE Frame 7EA Gas Turbine or aircraft engines like the Pratt & Whitney Canada PT6A, the forward stationary seal helps maintain engine efficiency by preventing hot gases or compressed air from escaping through unwanted paths.

Precision turbine component manufacturers such as HGTP produce high-accuracy stationary seals using advanced machining and high-temperature materials designed for extreme turbine environments.

Function of the Turbine Forward Stationary Seal

The stationary seal works in combination with rotating seals and turbine disks to maintain proper airflow management inside the turbine.

Air Leakage Control

The seal minimizes leakage of high-pressure air or combustion gases between turbine stages.

Efficiency Improvement

By preventing pressure loss, the seal helps maintain turbine efficiency and overall engine performance.

Thermal Protection

The seal helps control hot gas flow, protecting surrounding components from excessive heat exposure.

Pressure Balance

Proper sealing maintains correct pressure distribution across turbine stages, ensuring stable operation.

Materials Used

Turbine seals must operate under high temperatures, pressure fluctuations, and mechanical vibration. Therefore, specialized materials are used.

Nickel-Based Superalloys

Common materials include:

• Inconel 718

• Inconel 625

• Hastelloy X

Advantages:

• high strength at elevated temperatures

• strong oxidation resistance

• resistance to thermal fatigue

• long service life in turbine environments

Heat-Resistant Stainless Steel

Some stationary seals use heat-resistant stainless steels such as:

• AISI 321

• AISI 347

These materials provide good thermal stability and corrosion resistance.

Manufacturing Process

Producing turbine stationary seals requires extremely high precision to maintain tight clearances between rotating and stationary components.

CNC Precision Machining

Most turbine seals are machined from forged rings or billets using multi-axis CNC machines.

Typical machining operations include:

• internal and external turning

• precision groove machining

• sealing surface finishing

• bolt hole drilling

Critical sealing surfaces require very tight dimensional tolerances.

Precision Grinding

Grinding processes are often used to achieve high surface finish quality and dimensional accuracy.

Typical surface finish requirements:

Ra 0.4 – 0.8 μm

Heat Treatment

After machining, components may undergo heat treatment to improve mechanical strength and thermal stability.

Typical processes include:

• solution heat treatment

• aging treatment

• stress relief

Technical Specifications (Typical)

Although exact specifications vary depending on turbine model, typical parameters include:

Outer diameter
200 mm – 600 mm

Thickness
5 mm – 20 mm

Operating temperature
600°C – 1000°C

Sealing clearance tolerance
±0.02 mm – ±0.05 mm

Surface roughness
Ra 0.4 – 0.8 μm

Inspection and Quality Control

Because turbine seals are critical to engine efficiency, strict inspection procedures are required.

Dimensional Inspection

Coordinate Measuring Machines (CMM) verify dimensional accuracy and concentricity.

Non-Destructive Testing (NDT)

Common inspection methods include:

• dye penetrant testing

• ultrasonic testing

• radiographic inspection

These tests detect cracks, inclusions, or manufacturing defects.

Material Verification

Material testing ensures the component meets required specifications through:

• chemical composition analysis

• hardness testing

• metallographic examination

Applications

The Turbine Forward Stationary Seal is used in various turbine systems, including:

• industrial gas turbines for power generation

• aircraft turboprop and turbofan engines

• aero-derivative turbines

• turbine maintenance and overhaul (MRO)

These seals are essential for maintaining proper airflow control, turbine efficiency, and long-term operational reliability.

Precision Turbine Component Manufacturing

Companies specializing in turbine hot-section components, such as HGTP, provide advanced manufacturing capabilities including:

• multi-axis CNC machining

• precision turning and grinding

• machining of nickel-based superalloys

• turbine sealing component fabrication

These capabilities ensure the production of high-precision components suitable for demanding turbine applications.
