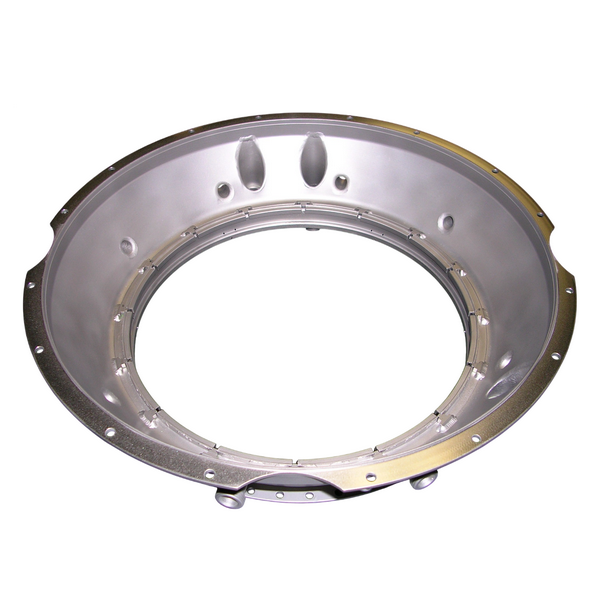

5000T37P01 Second Stage Turbine Casing

The 5000T37P01 Second Stage Turbine Casing is a major structural component used in heavy-duty gas turbine engines. It forms the outer housing for the second stage of the turbine section, providing structural support, gas containment, and alignment for internal turbine components.

In industrial power generation turbines such as the GE Frame 7EA Gas Turbine, the turbine casing plays a critical role in maintaining the mechanical integrity of the turbine assembly while allowing high-temperature combustion gases to pass through successive turbine stages efficiently.

Manufacturers specializing in high-precision turbine components, including HGTP, produce turbine casings using advanced machining technologies and high-temperature alloys designed to operate in extreme turbine environments.

Function of the Second Stage Turbine Casing

The second stage turbine casing surrounds the turbine rotor and stationary components within the second stage of the turbine.

Key functions include:

Structural Support

The casing supports internal components such as turbine nozzles, seals, and guide vanes, maintaining correct alignment with the turbine rotor.

Gas Containment

It contains high-temperature gases flowing from the combustion system through the turbine stages.

Component Mounting

The casing provides mounting interfaces for turbine nozzles, seals, and cooling systems.

Thermal Protection

It shields external turbine structures from the extreme heat generated during turbine operation.

Materials Used

Because turbine casings operate under high thermal and mechanical loads, specialized materials are required.

High-Temperature Alloy Steel

Common materials include:

• Cr-Mo alloy steel

• heat-resistant cast steel

• high-strength stainless steel alloys

These materials provide:

• high structural strength

• resistance to thermal expansion and stress

• excellent fatigue resistance

• long service life in turbine environments

Nickel-Based Superalloys

In some turbine designs, nickel-based alloys may be used in specific areas exposed to higher temperatures.

Typical materials include:

• Inconel 625

• Inconel 718

These alloys provide superior high-temperature strength and oxidation resistance.

Manufacturing Process

Manufacturing a turbine casing such as 5000T37P01 involves several heavy-duty and precision engineering processes.

Casting or Forging

The base casing structure is typically produced through:

• precision casting

• large-scale forging

These processes create the basic structural geometry while ensuring strong material properties.

CNC Machining

After casting or forging, extensive CNC machining is required to finish critical surfaces.

Typical machining operations include:

• flange machining

• bolt hole drilling

• sealing surface machining

• mounting interface machining

Large multi-axis CNC machining centers are used to ensure dimensional accuracy.

Precision Boring

Internal diameters must be machined with high concentricity to ensure proper alignment of turbine components.

Typical tolerance range:

±0.03 mm – ±0.08 mm

Heat Treatment

Heat treatment processes improve the mechanical strength and durability of the casing.

Typical treatments include:

• stress relief annealing

• normalizing

• tempering

These processes reduce residual stress caused by casting or machining.

Technical Specifications (Typical)

Although exact specifications depend on turbine configuration, typical parameters include:

Outer diameter
800 mm – 2000 mm

Wall thickness
30 mm – 120 mm

Operating temperature
500°C – 900°C

Material hardness
200 – 320 HB

Critical tolerance
±0.03 mm – ±0.08 mm

Surface roughness
Ra 1.6 – 3.2 μm

Inspection and Quality Control

Because turbine casings are major structural components, strict inspection procedures are required.

Dimensional Inspection

Coordinate Measuring Machines (CMM) verify dimensional accuracy and alignment of critical interfaces.

Non-Destructive Testing (NDT)

Common inspection methods include:

• ultrasonic testing

• magnetic particle inspection

• dye penetrant testing

• radiographic testing

These techniques detect internal defects, cracks, or casting imperfections.

Pressure and Structural Testing

Some turbine casings undergo additional verification such as:

• pressure containment testing

• stress analysis verification

• structural integrity inspection

Applications

The 5000T37P01 Second Stage Turbine Casing is commonly used in:

• heavy-duty industrial gas turbines

• combined-cycle power plants

• gas turbine power generation facilities

• turbine maintenance and overhaul (MRO)

These casings ensure safe containment of high-temperature gases and proper alignment of turbine components for efficient energy generation.

Precision Turbine Component Manufacturing

Manufacturers with advanced turbine engineering capabilities, such as HGTP, provide specialized services including:

• large turbine casing machining

• superalloy component manufacturing

• turbine hot-section component fabrication

• turbine component repair and replacement parts

These capabilities support power generation and industrial turbine systems worldwide.
