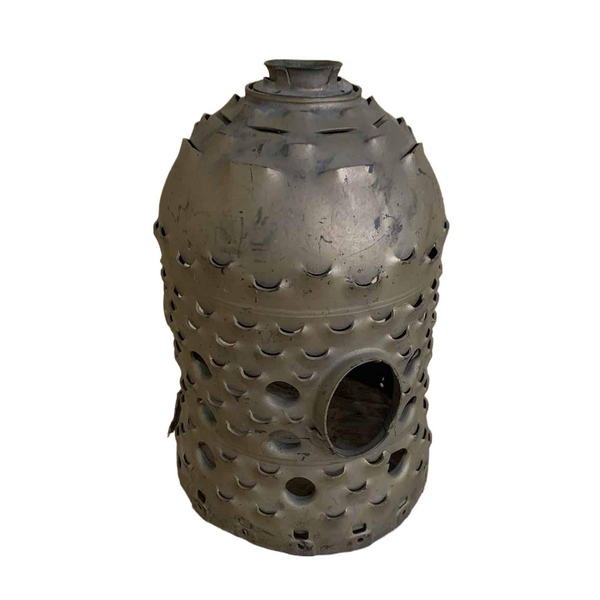

General Electric J79 Combustion Liner Element

The combustion liner element used in the General Electric J79 turbojet engine is a critical hot-section component that forms part of the combustion chamber assembly. It is responsible for containing and stabilizing the combustion process where fuel mixes with compressed air and burns to generate high-energy gases that drive the turbine stages.

The J79 engine, developed by General Electric, powered several well-known military aircraft including the McDonnell Douglas F‑4 Phantom II, the Lockheed F‑104 Starfighter, and the Convair B‑58 Hustler. Because the combustion chamber operates under extremely high temperatures and pressure, the combustion liner element must be made from advanced heat-resistant materials and manufactured with precise engineering processes.

Specialized turbine component manufacturers such as HGTP provide precision fabrication and machining services for combustion liners and similar aerospace hot-section components.

Function of the Combustion Liner Element

The combustion liner element forms the internal wall of the combustion chamber and performs several important functions.

Flame Containment

The liner safely contains the combustion flame and protects the surrounding engine structure from direct exposure to extremely high temperatures.

Fuel-Air Mixing Support

The liner’s internal geometry helps maintain proper mixing of fuel and compressed air, ensuring stable combustion.

Airflow Distribution

Openings and air ports in the liner regulate airflow entering the combustion zone.

Thermal Protection

Cooling holes allow compressor air to flow along the liner surface, creating a protective film of cooler air that reduces metal temperature.

Materials Used

Combustion liners in high-performance turbojet engines such as the J79 must withstand temperatures that can exceed 1000°C.

Nickel-Based Superalloys

Typical materials used include:

• Inconel 625

• Inconel 718

• Hastelloy X

These alloys offer:

• excellent high-temperature strength

• strong oxidation resistance

• resistance to thermal fatigue

• durability under repeated heating cycles

Heat-Resistant Stainless Steel

Some liner elements may also incorporate specialized stainless steels such as:

• AISI 321

• AISI 347

These materials provide good thermal stability and welding performance.

Manufacturing Process

Producing a J79 combustion liner element requires specialized aerospace manufacturing techniques.

Precision Sheet Metal Forming

The liner body is typically fabricated from thin high-temperature alloy sheets using processes such as:

• rolling

• hydroforming

• deep drawing

These methods create the cylindrical or segmented geometry required for the combustion chamber.

Precision Welding

Because combustion liners often consist of multiple sections, welding is required to assemble the final structure.

Common welding technologies include:

• TIG welding

• laser welding

• electron beam welding

These processes provide strong joints while minimizing thermal distortion.

CNC Machining

Certain structural features must be machined with high precision.

Machined features include:

• mounting flanges

• attachment points

• alignment features

• interface surfaces

Multi-axis CNC machining ensures precise tolerances for correct installation in the combustion chamber.

Cooling Hole Drilling

Combustion liners contain numerous precision cooling holes that allow air to form a cooling film along the liner surface.

Typical specifications:

Cooling hole diameter
0.5 mm – 1.5 mm

Manufacturing methods include:

• laser drilling

• EDM drilling

• precision mechanical drilling

These holes are essential for maintaining acceptable metal temperatures during engine operation.

Technical Specifications (Typical)

Typical parameters for combustion liner elements used in turbojet engines like the J79 include:

Outer diameter
200 mm – 500 mm

Wall thickness
1 mm – 3 mm

Operating temperature
900°C – 1100°C

Cooling hole diameter
0.5 mm – 1.5 mm

Critical tolerance
±0.02 mm – ±0.05 mm

Surface roughness
Ra 0.8 – 1.6 μm

Inspection and Quality Control

Because combustion liners are critical safety components in aircraft engines, strict inspection procedures are required.

Dimensional Inspection

Coordinate Measuring Machines (CMM) verify the accuracy of all critical dimensions.

Non-Destructive Testing (NDT)

Typical inspection methods include:

• dye penetrant inspection

• radiographic testing

• ultrasonic inspection

These methods detect cracks, weld defects, and internal flaws.

Material Verification

Additional quality checks include:

• chemical composition analysis

• hardness testing

• metallographic examination

These tests confirm that materials meet aerospace engineering standards.

Applications

The combustion liner element for the General Electric J79 engine is used in:

• military turbojet aircraft engines

• aerospace engine maintenance and overhaul (MRO)

• aviation spare parts manufacturing

• restoration of legacy military aircraft engines

These components are essential for maintaining stable combustion and ensuring reliable engine performance.

Precision Aerospace Component Manufacturing

Manufacturers with expertise in turbine hot-section components, such as HGTP, provide advanced capabilities including:

• machining of nickel-based superalloys

• combustion liner fabrication

• precision cooling hole drilling

• aerospace turbine component manufacturing

These technologies support the production and maintenance of high-performance turbine engines used in aerospace and defense applications.
