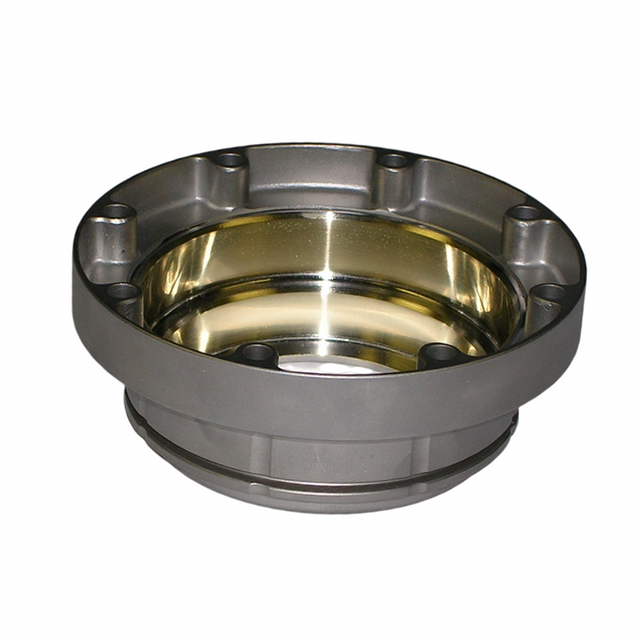

4003T01P01 Bearing Rear Seal

The 4003T01P01 Bearing Rear Seal is a critical component used in gas turbine and aerospace engines to protect turbine and generator bearings from oil leakage, contamination, and excessive wear. Located at the rear section of the bearing assembly, this seal maintains the integrity of the lubrication system while ensuring smooth rotational performance of the shaft.

High-precision manufacturers such as HGTP specialize in producing bearing seals like 4003T01P01 using advanced CNC machining and high-temperature, wear-resistant materials for reliable long-term operation.

Function of the Bearing Rear Seal

The rear seal performs several essential functions in turbine and generator systems:

Lubrication Retention

It prevents lubricating oil from leaking out of the bearing housing while ensuring the bearing remains properly lubricated.

Contamination Protection

The seal blocks dust, debris, and high-temperature combustion gases from entering the bearing, which could cause premature wear or failure.

Shaft Stabilization

By maintaining proper oil film and preventing leakage, the seal helps stabilize the bearing and the rotating shaft.

Thermal and Mechanical Stress Management

The seal operates under high rotational speeds and elevated temperatures, requiring materials that can withstand thermal expansion and mechanical stress without losing integrity.

Materials Used

Bearing rear seals are typically fabricated from high-strength metals and engineered polymers to ensure durability and longevity.

Metal Components

• Stainless steel (AISI 304, 316, 410) for corrosion resistance and strength

• Nickel-based superalloys (Inconel 718, 625) for high-temperature applications

Elastomer/Polymer Components

• Viton (FKM) for oil and heat resistance

• PTFE (Teflon) for low friction and chemical resistance

The combination of metal and polymer materials provides excellent sealing performance while allowing some flexibility to accommodate shaft movement.

Manufacturing Process

Producing the 4003T01P01 Bearing Rear Seal requires precision machining and advanced manufacturing techniques.

CNC Machining

• Multi-axis CNC lathes and milling machines are used to produce tight-tolerance metal components.

• Critical surfaces such as sealing edges and contact surfaces are machined to ensure proper engagement with the bearing.

Assembly

• Elastomer or polymer sealing elements are precisely fitted into metal housings.

• Tight tolerances ensure uniform contact with the shaft without excessive friction.

Surface Finishing

• Sealing surfaces are ground or polished to achieve Ra 0.2 – 0.8 μm, minimizing wear and improving sealing efficiency.

Technical Specifications (Typical)

While specifications vary based on turbine or engine model, typical parameters for a rear bearing seal like 4003T01P01 include:

• Outer diameter: 50 mm – 150 mm

• Inner bore diameter: 30 mm – 120 mm

• Material hardness: 30 – 45 HRC (metal components)

• Operating temperature: -40°C to 250°C (polymer dependent)

• Sealing clearance: 0.01 mm – 0.05 mm

• Surface roughness: Ra 0.2 – 0.8 μm

Inspection and Quality Control

High-precision bearing seals undergo strict quality control to ensure reliability.

Dimensional Inspection

• Coordinate Measuring Machines (CMM) verify critical dimensions and tolerances.

Non-Destructive Testing (NDT)

• Dye penetrant inspection and ultrasonic testing detect cracks or material defects in metal components.

Material Verification

• Hardness testing, chemical composition analysis, and polymer property testing ensure compliance with design specifications.

Applications

The 4003T01P01 Bearing Rear Seal is widely used in:

• Gas turbines for power generation

• Aircraft engine bearings

• Industrial generators and compressors

• Maintenance, repair, and overhaul (MRO) operations

This component ensures smooth rotation, prevents contamination, and prolongs bearing life, which is critical for high-performance turbines and engines.

Precision Turbine Component Manufacturing

Manufacturers like HGTP provide advanced capabilities for producing high-quality bearing seals, including:

• Multi-axis CNC machining for tight tolerances

• High-temperature superalloy machining

• Polymer and elastomer sealing integration

• Hot-section turbine and bearing component fabrication

These capabilities ensure that components like the 4003T01P01 rear bearing seal meet the demanding performance and reliability standards required by aerospace and industrial turbine systems.
