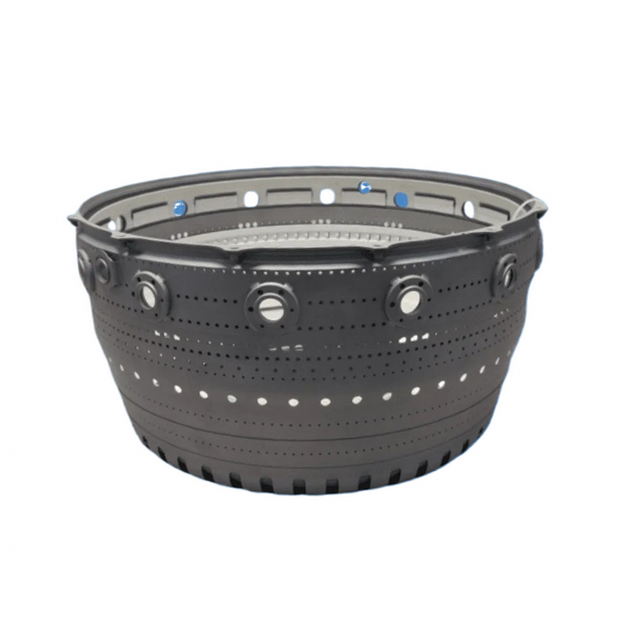

PT6 Combustion Liner – P/N 3122633-01

The PT6 Combustion Liner (P/N 3122633-01) is a critical hot-section component of the Pratt & Whitney PT6 turboprop and turboshaft engine series. This component forms the internal wall of the combustion chamber, where compressed air mixes with fuel to generate high-temperature gases that drive the turbine. Precision and durability are essential, as the liner operates under extreme thermal and mechanical stresses.

Specialized manufacturers such as HGTP provide precision engineering, machining, and heat-resistant alloy fabrication for PT6 combustion liners, ensuring high performance and compliance with aerospace standards.

Function of the PT6 Combustion Liner

The combustion liner serves as the structural boundary of the combustion zone and performs multiple critical roles:

Flame Containment

The liner contains the combustion flame, preventing direct exposure of surrounding engine components to extreme temperatures.

Air-Fuel Mixture Stabilization

Its internal geometry ensures proper mixing of fuel and compressed air for efficient, stable combustion.

Thermal Protection

Cooling passages and film cooling allow a thin layer of air to flow along the liner surface, reducing metal temperature and extending service life.

Structural Support

It supports mounting interfaces for fuel nozzles and other internal combustion components.

Materials Used

Combustion liners must withstand temperatures exceeding 1000°C, thermal cycling, and high vibration.

Nickel-Based Superalloys

• Inconel 625

• Inconel 718

• Hastelloy X

Advantages:

• High-temperature strength

• Oxidation and corrosion resistance

• Thermal fatigue resistance

• Long service life

Heat-Resistant Stainless Steels

• AISI 321

• AISI 347

Used for lower-temperature sections or reinforcement areas, providing weldability and dimensional stability.

Manufacturing Process

Producing the 3122633-01 PT6 combustion liner requires advanced aerospace manufacturing methods:

Precision Sheet Forming

• Rolls, draws, or hydroforms alloy sheets into cylindrical or segmented liner shapes.

Precision Welding

• TIG, laser, or electron beam welding joins multiple liner segments with minimal distortion.

CNC Machining

• Critical surfaces such as mounting flanges, attachment points, and alignment features are machined with ±0.02 mm tolerances.

Cooling Hole Drilling

• Hundreds of precision holes (0.5 mm – 1.5 mm diameter) allow airflow to protect the liner from extreme heat.

• Methods include laser drilling, EDM drilling, or high-precision mechanical drilling.

Technical Specifications (Typical)

Inspection and Quality Control

Due to its critical role, the PT6 combustion liner undergoes stringent inspection:

Dimensional Inspection

• CMM verifies all critical dimensions and concentricity.

Non-Destructive Testing (NDT)

• Dye penetrant inspection, radiography, and ultrasonic testing detect cracks, porosity, or weld defects.

Material Verification

• Chemical composition, hardness testing, and metallography ensure compliance with aerospace standards.

Applications

The PT6 combustion liner (P/N 3122633-01) is used in:

• PT6A turboprop engines (e.g., for Beechcraft King Air series)

• PT6T turboshaft engines

• Aircraft engine MRO (maintenance, repair, overhaul)

• Aerospace spare parts production

It ensures stable combustion, optimal thermal efficiency, and long service life of the engine.

Aerospace Precision Manufacturing

Companies such as HGTP provide specialized services for combustion liners:

• CNC machining of high-temperature alloys

• Fabrication of precision hot-section components

• Cooling hole drilling and film cooling optimization

• Aerospace-grade welding and assembly

These capabilities enable the production of reliable, high-performance combustion liners for the PT6 engine series.
