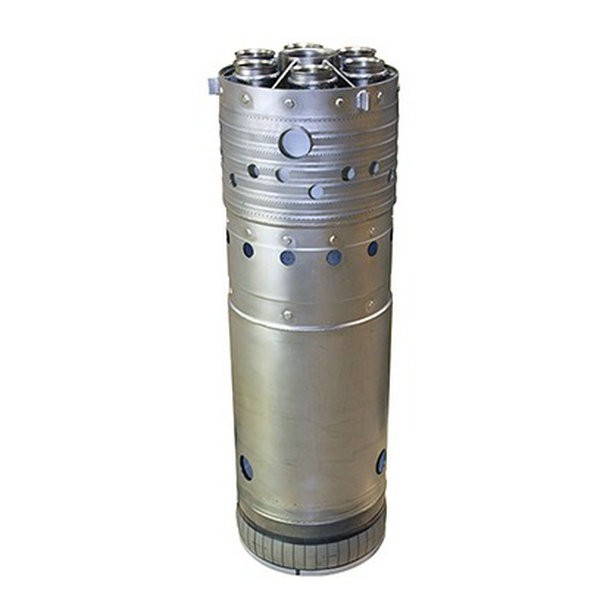

MS9001 DLN Combustion Liner

The MS9001 DLN Combustion Liner is a critical hot-section component designed for dry low NOx (DLN) gas turbines, specifically the GE MS9001 series. DLN technology is used to minimize nitrogen oxide emissions while maintaining stable and efficient combustion. The combustion liner forms the internal wall of the combustion chamber, where compressed air mixes with fuel and ignites, producing high-temperature gases that drive the turbine rotor.

Specialized manufacturers such as HGTP provide precision fabrication, CNC machining, and material treatment for MS9001 DLN combustion liners to ensure performance under extreme thermal and mechanical stresses.

Function of the MS9001 DLN Combustion Liner

The combustion liner plays several essential roles in DLN gas turbines:

Flame Stabilization

Maintains a stable flame in the combustion zone while preventing flashback to upstream components.

Fuel-Air Mixing

Internal geometry ensures precise fuel and air mixing for efficient combustion and low NOx emissions.

Thermal Protection

Cooling holes and film cooling channels maintain the liner surface temperature, preventing material degradation.

Structural Support

Provides mounting surfaces for fuel nozzles and other internal combustion components.

Materials Used

DLN combustion liners are exposed to temperatures up to 1100°C and require excellent thermal, mechanical, and chemical resistance. Typical materials include:

Nickel-Based Superalloys

• Inconel 625

• Inconel 718

• Hastelloy X

Advantages: high-temperature strength, oxidation and corrosion resistance, excellent thermal fatigue durability.

Heat-Resistant Stainless Steel

• AISI 321, AISI 347

Used in less stressed areas, providing weldability and dimensional stability.

Manufacturing Process

Producing an MS9001 DLN combustion liner requires advanced precision manufacturing:

Sheet Forming and Segment Fabrication

• Rolling, hydroforming, or deep drawing shapes cylindrical or segmented liner sections.

Welding and Assembly

• TIG, laser, or electron beam welding assembles liner segments with minimal distortion.

CNC Machining

• Critical surfaces, mounting flanges, and alignment features are machined to tight tolerances (±0.02 – ±0.05 mm).

Cooling Hole Drilling

• Hundreds of precision holes (0.5 – 2 mm diameter) provide cooling airflow for film protection.

• Methods include laser drilling, EDM, or high-precision mechanical drilling.

Technical Specifications (Typical)

Inspection and Quality Control

Strict inspection ensures reliability in high-performance turbines:

Dimensional Inspection

• CMM verification of concentricity and critical dimensions.

Non-Destructive Testing (NDT)

• Dye penetrant, radiography, and ultrasonic inspections detect cracks or weld defects.

Material Verification

• Chemical composition, hardness testing, and metallography confirm compliance with turbine standards.

Applications

The MS9001 DLN Combustion Liner is used in:

• GE MS9001 DLN gas turbines for power generation

• Industrial and utility-scale turbines

• MRO (maintenance, repair, overhaul) operations

• Turbine spare parts production

It ensures high combustion efficiency, reduced NOx emissions, and long-term durability under challenging operating conditions.

Precision Turbine Component Manufacturing

Companies like HGTP specialize in producing high-quality hot-section turbine components:

• CNC machining of superalloys

• Fabrication of DLN combustion liners

• Precision cooling hole drilling and airflow optimization

• Aerospace-grade welding and assembly

These capabilities ensure that MS9001 DLN combustion liners meet demanding environmental and operational performance requirements.
