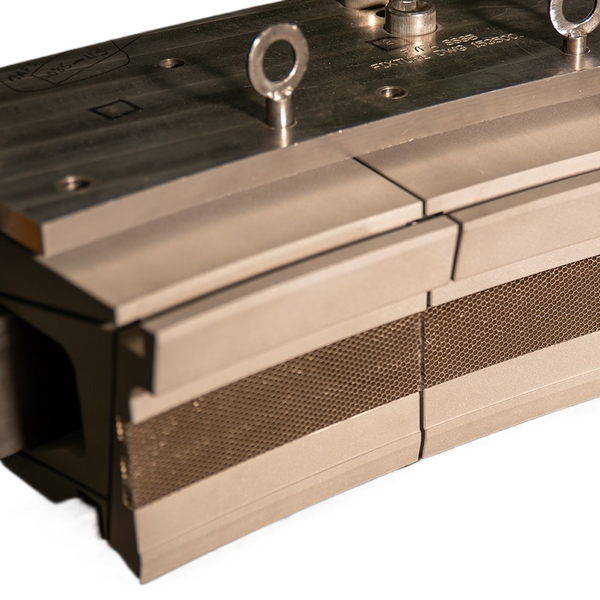

Gas Turbine Shroud Blocks

Gas turbine shroud blocks are essential components in the gas turbine industry. They are built to endure extreme temperatures and pressures. Their role is to guide hot combustion gases towards the turbine blades, causing them to spin. Allied Power Group, a leading name in Gas Turbine Component Repair, offers specialized repair and maintenance services for these blocks in Houston, Texas.

The design and functionality of shroud blocks are key to the turbine’s optimal performance. Any problems with these components can significantly reduce efficiency and increase downtime. Gas turbines have three stages, each with stationary nozzles and corresponding wheel buckets. The size of the turbine buckets increases from the first to the third stage, reflecting the decrease in pressure in each stage.

Shroud blocks are vital for maintaining gas turbine efficiency. These turbines are used across various sectors, including power generation and aviation. The turbine shell ensures the axial and radial positions are maintained, which is critical for performance. It also includes cooling air passages to manage temperature. Nozzles in each stage are sealed to prevent energy loss through leakage, ensuring peak performance.

Key Takeaways

Gas turbine shroud blocks are critical components that direct hot combustion gases onto turbine blades.

The design and function of shroud blocks are essential for optimal turbine performance.

Shroud blocks are designed to withstand high temperatures and pressures.

Gas turbines consist of three stages with stationary nozzles and corresponding wheel buckets.

HGTP provides expert repair and maintenance services .

Shroud blocks play a vital role in maintaining the efficiency of gas turbines.
