Steam Turbine Elliptical Journal – High-Performance Bearing Solutions by HGTP

Overview

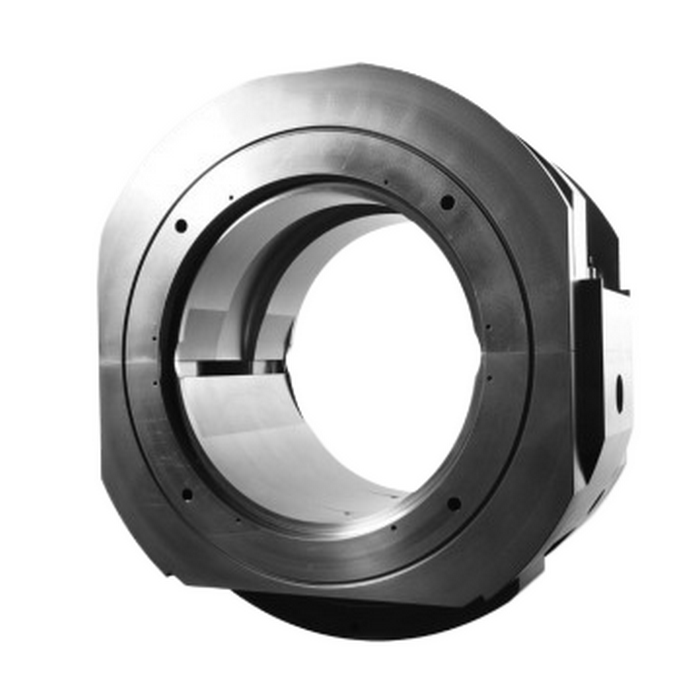

The Steam Turbine Elliptical Journal is a critical component in steam turbines, designed to support rotor shafts under high-speed rotation and heavy loads. Manufactured by HGTP, these elliptical journals are engineered for superior durability, dimensional stability, and optimal lubrication performance, ensuring reliable operation of steam turbines in power generation and industrial applications.

Elliptical journals differ from conventional cylindrical bearings by providing improved load distribution and reduced edge stresses, which enhances bearing life and minimizes vibration. HGTP applies advanced metallurgical techniques and precision machining to deliver consistent quality that meets stringent industry standards.

Material & Construction

HGTP elliptical journals are produced using high-strength bearing-grade alloys with excellent fatigue and corrosion resistance. Common materials include:

• Bronze-based alloys (CuSn, CuPb): Provide excellent conformability and embeddability

• Babbitt coatings (SnSb, PbSn): Applied for low-friction sliding surfaces

• Steel backings: For high load-carrying capacity and dimensional stability

The combination of high-strength backing with a soft, low-friction lining ensures efficient load transfer and prevents localized wear or seizure. Surface treatments such as heat treatment, precision grinding, and honing improve surface finish and maintain tight tolerances required for steam turbine operation.

Technical Specifications (Typical Values)

HGTP can customize dimensions, tolerances, and coatings based on turbine specifications.

Key Performance Features

1. Optimized Load Distribution – Elliptical geometry reduces edge loading and prolongs bearing life.

2. High Durability & Fatigue Resistance – Advanced alloy and Babbitt lining withstand thermal and mechanical stresses.

3. Low Friction & High Efficiency – Smooth surface finish ensures minimal energy loss during operation.

4. Corrosion & Wear Resistance – Alloy selection and coatings protect against oxidation and erosive wear.

5. Precision Machining – Tight tolerances ensure proper fit, minimal vibration, and reliable rotor alignment.

Applications

HGTP Steam Turbine Elliptical Journals are suitable for:

• Utility-scale steam turbines in power plants

• Industrial process turbines in chemical, petrochemical, and steel plants

• Replacement or retrofit for OEM turbines

• High-speed rotating machinery requiring heavy-load support
