Steam Turbine Rotors – High-Precision Rotating Solutions by HGTP

Overview

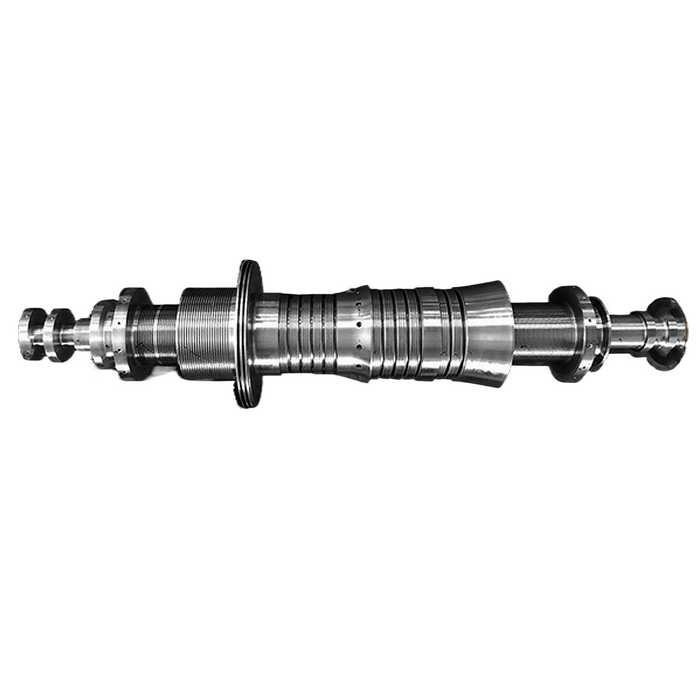

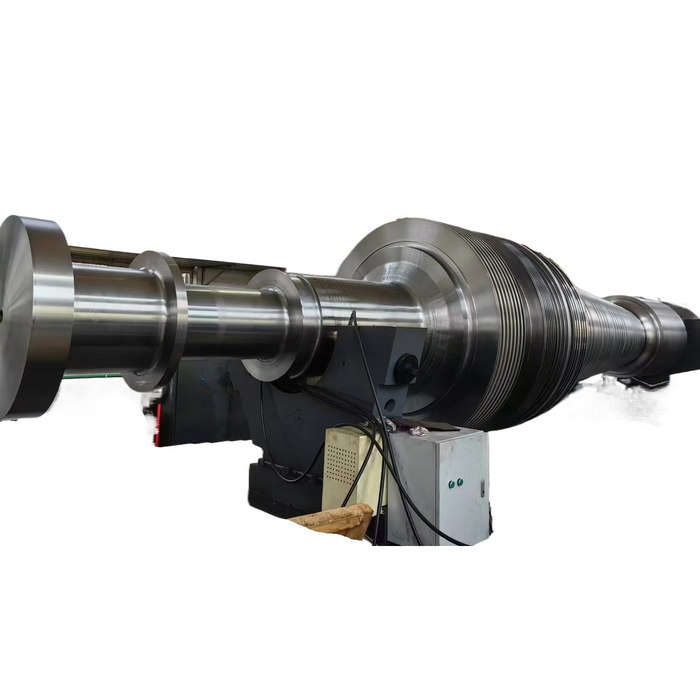

The Steam Turbine Rotor is the central rotating assembly in a steam turbine, converting the thermal energy of high-pressure steam into mechanical rotational energy. Manufactured by HGTP, our rotors are engineered for high reliability, exceptional strength, and dimensional precision, ensuring stable operation in power generation, industrial turbines, and high-speed applications.

HGTP steam turbine rotors are designed to withstand extreme temperatures, high rotational speeds, and significant mechanical stresses, making them essential for the efficiency and longevity of steam turbine systems.

Material & Construction

HGTP rotors are made using high-strength alloy steels and advanced metallurgical treatments to meet demanding operational requirements:

• Alloy steels (e.g., 35CrMo, 42CrMo, 30CrNiMo): Provide high tensile and fatigue strength

• Forged and heat-treated rotors: Ensure superior mechanical properties and resistance to creep

• Surface treatments: Precision machining, balancing, and nitriding improve wear resistance and reduce stress concentration

Key design features include:

• Precision-machined bearing journals for smooth rotation

• Integrated slots or keys for blade attachment

• Optimized mass distribution for vibration minimization

• Dynamic balancing to reduce axial and radial forces

Technical Specifications (Typical Values)

HGTP can customize rotor dimensions, materials, and surface treatments based on turbine model and operating conditions.

Key Performance Features

1. High Mechanical Strength & Fatigue Resistance – Withstands high centrifugal forces and torque during operation.

2. Precision Machining & Balancing – Ensures minimal vibration and smooth rotor dynamics.

3. High Temperature Stability – Maintains structural integrity in high-temperature steam environments.

4. Blade Integration – Rotor slots or keys designed for secure turbine blade mounting.

5. Long Service Life – Optimized material selection and heat treatment reduce wear and creep.

Applications

HGTP steam turbine rotors are widely used in:

• Utility-scale power generation turbines

• Industrial steam turbines in chemical, petrochemical, and steel plants

• Replacement and retrofit for OEM rotors

• High-speed turbines requiring precision balancing and reliability

Conclusion

The HGTP Steam Turbine Rotor is a high-performance, precision-engineered component crucial to turbine efficiency and longevity. With advanced alloy steels, precision machining, and optimized design, HGTP rotors ensure high reliability, reduced vibration, and long operational life. Ideal for both OEM manufacturing and aftermarket replacement, HGTP guarantees rotors that meet the most stringent industry standards, supporting safe and efficient turbine operation in demanding industrial environments.
