Steam Turbine Diaphragms – Precision Flow Control by HGTP

Overview

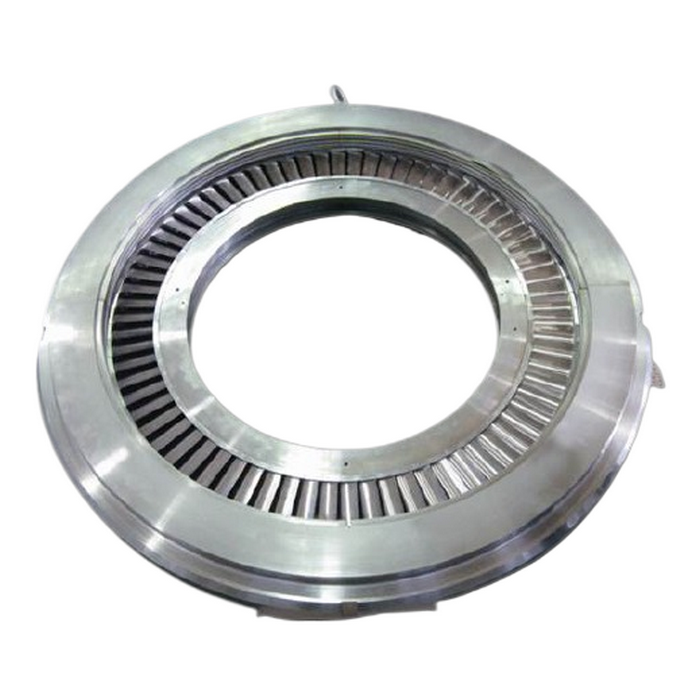

Steam turbine diaphragms are critical components that direct and control the flow of high-pressure steam between turbine stages. Manufactured by HGTP, these diaphragms are engineered to ensure high efficiency, precise steam guidance, and long-term durability in industrial and power generation turbines.

By maintaining proper flow angles and minimizing energy losses, HGTP diaphragms optimize turbine performance, reduce vibration, and improve overall energy conversion efficiency. They are essential for maintaining reliable, high-speed operation under extreme temperature and pressure conditions.

Material & Construction

HGTP steam turbine diaphragms are produced from high-strength, heat-resistant alloys to withstand the challenging operating environment:

• Alloy steels (e.g., 35CrMo, 42CrMo): Provide high tensile strength and creep resistance

• Stainless steels (e.g., 17-4 PH, 13Cr): Used for corrosion resistance in specific stages

• Nickel-based superalloys (e.g., Inconel, Nimonic): For high-temperature applications in HP stages

• Surface Treatments: Shot peening, polishing, and coating enhance wear resistance and reduce erosion

Design Features:

• Precisely machined nozzle openings for controlled steam acceleration

• Slots or attachment features for secure integration with the turbine casing

• Aerodynamically optimized profiles to reduce pressure drop and turbulence

• Modular or bolted designs for easy assembly and maintenance

Technical Specifications (Typical Values)

HGTP can customize dimensions, thickness, and materials according to turbine stage and OEM requirements.

Key Performance Features

1. Precise Steam Flow Control – Optimized nozzle design ensures maximum energy extraction.

2. High Strength & Thermal Stability – Alloy selection and heat treatment maintain integrity under high pressure and temperature.

3. Corrosion & Erosion Resistance – Surface coatings and durable alloys resist oxidation and particulate wear.

4. Vibration and Stress Resistant – Machined profiles minimize flow-induced vibration and stress concentration.

5. Ease of Maintenance – Modular or bolted designs allow efficient replacement and inspection.

Applications

HGTP steam turbine diaphragms are suitable for:

• High-pressure (HP), intermediate-pressure (IP), and low-pressure (LP) steam turbines

• Utility-scale power plants and industrial process turbines

• Replacement and retrofit for OEM turbines

• Multi-stage turbines requiring precise flow guidance

Conclusion

HGTP Steam Turbine Diaphragms provide high-precision, durable, and efficient solutions for controlling steam flow in turbines. With advanced alloys, precision machining, and optimized aerodynamic profiles, HGTP diaphragms enhance turbine efficiency, reduce wear, and ensure reliable operation. Ideal for OEM, industrial, and power generation applications, they support long-term performance and maintenance-friendly turbine operation.
