MS6001 Row 3 Shroud

MS6001 Row 3 Shroud

Durable Protection & Performance Optimization by HGTP

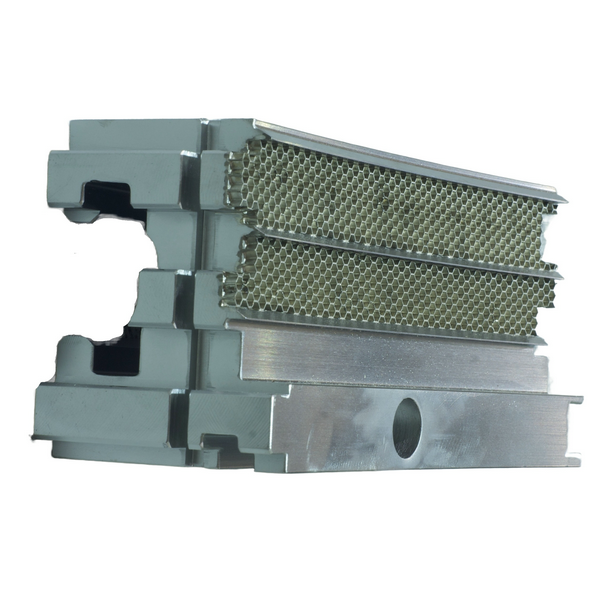

The MS6001 Row 3 Shroud is a critical stationary component within the GE Frame 6B (MS6001) gas turbine, designed to form part of the outer flow path surrounding the third-stage turbine buckets. Its primary function is to maintain proper gas flow geometry, minimize tip leakage, and protect surrounding structures from high-temperature exhaust gases.

Although the Row 3 shroud operates at relatively lower temperatures compared to upstream stages, it is still exposed to continuous thermal cycling, high-velocity gas flow, and mechanical stress. Over time, these conditions can result in wear, oxidation, distortion, and coating degradation, which may negatively impact turbine efficiency and overall performance.

HGTP provides comprehensive repair, refurbishment, and manufacturing solutions for MS6001 Row 3 shrouds. Our process begins with detailed inspection and non-destructive examination (NDE) to detect cracks, material loss, and dimensional deviations. Based on the assessment, we perform precision repairs such as welding restoration, surface refurbishment, and machining to recover original tolerances and structural integrity.

To enhance durability and extend service life, HGTP applies advanced protective coatings that improve resistance to oxidation and erosion. Where applicable, engineering improvements are introduced to optimize sealing performance and reduce leakage losses, contributing to improved turbine efficiency.

All HGTP-repaired or newly manufactured shrouds undergo strict quality control procedures, including dimensional verification and fit-up checks, ensuring full compliance with or exceeding OEM specifications.

With strong engineering support, high-quality workmanship, and cost-effective alternatives to OEM solutions, HGTP helps operators maintain stable turbine operation, improve efficiency, and extend the lifecycle of critical components.
