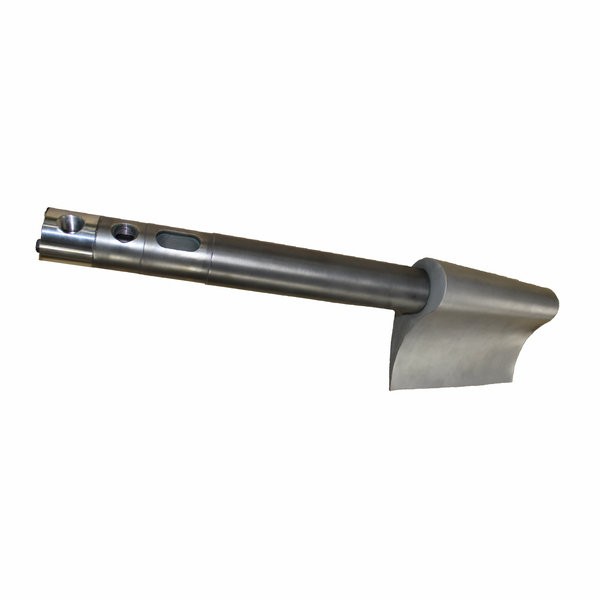

MS3002 Row 2 Nozzle

The Frame 3002, also known as the MS3002, is a versatile industrial gas turbine designed by General Electric (GE), commonly used in pipeline and process applications requiring between 5,000 to 16,000 horsepower.

The Stage 2 Nozzle Partitions, also referred to as the second-stage nozzle partitions, are critical components within this turbine. They function to direct the flow of hot gases from the combustion chamber onto the turbine blades, thereby driving the turbine's rotation and enabling energy production. These partitions are subject to high thermal and mechanical stresses and are typically constructed from advanced alloys to withstand such conditions. Various versions of these components are available to accommodate different operational requirements.
